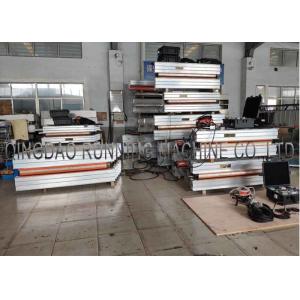

Assembled type 1200mm Rubber Conveyor Belt Joint Vulcanizing Machine
What is Rubber conveyor belt joint vulcanizing?
Rubber conveyor belt joint vulcanizing is the process of joining together two pieces of conveyor belt, or the process of jointing two ends of the conveyor belt. Usually, this is done to either elongate the original conveyor belt or to repair a torn or damaged conveyor belt.
Specification of Rubber conveyor belt joint vulcanizing machine:
| Model | Belt Width (mm) | Power(kw) | Dimensions (L*W*H mm) | Weight(kg) | Single Piece Weight(kg) |
| ZLJ-650*830 | 650 | 9.5 | 1370*830*630 | 430 | 45 |
| ZLJ-650*1000 | 10.8 | 1370*1000*630 | 500 | 66 |
| ZLJ-800*830 | 800 | 11.2 | 1520*830*630 | 535 | 70 |
| ZLJ-800*1000 | 13.5 | 1520*1000*630 | 575 | 79 |
| ZLJ-1000*830 | 1000 | 14.1 | 1720*830*630 | 595 | 82 |
| ZLJ-1000*1000 | 15.7 | 1720*1000*630 | 620 | 95 |
| ZLJ-1200*830 | 1200 | 16.5 | 1920*830*710 | 800 | 96 |
| ZLJ-1200*1000 | 17.2 | 1920*1000*710 | 870 | 113 |
| ZLJ-1400*830 | 1400 | 18.6 | 1930*830*760 | 930 | 107 |
| ZLJ-1400*1000 | 20.7 | 2120*1000*760 | 1180 | 132 |
| ZLJ-1600*830 | 1600 | 21.5 | 2320*830*800 | 1270 | 120 |
| ZLJ-1600*1000 | 22.3 | 2320*1000*800 | 1460 | 146 |
| ZLJ-1800*830 | 1800 | 23.3 | 2520*830*850 | 1380 | 137 |
| ZLJ-1800*1000 | 25.6 | 2520*1000*850 | 1650 | 164 |
| ZLJ-2000*830 | 2000 | 27.2 | 2720*830*950 | 1760 | 154 |
| ZLJ-2000*1000 | 30 | 2720*1000*950 | 1860 | 182 |
| ZLJ-2200*830 | 2200 | 29.2 | 2920*830*950 | 1860 | 165 |
| ZLJ-2200*1000 | 34.1 | 2920*1000*950 | 1970 | 198 |
Features of rubber conveyor belt joint vulcanizing machine:
1. Machine Maximum size: from 300MM-2000mm, or according the customer
2. Voltage: 220V 380V 415V 660V etc.;
3. Fast Cooling time: 15 minutes (from 145 degrees down to 70 degrees or less);
4. Time for temperature raise (from normal temperature to vulcanizing temperature) no more than 25 minutes;
5. The temperature difference of sulfide surface: ±2°c.
6. Temperature adjustment range: 0~300°c.
7. Vulcanizing pressure: 0~2.5 MPa (details refer to users' specifications and factory markings);
8. Time of heat preservation for vulcanizing could be adjusted according to thickness of the rubber belts;
9. Splicing length of rubber conveyor belt for vulcanizing jointing could be connected together by single or several pieces if necessary;
10. rubber conveyor belt as well as tension in kilogram required for vulcanizing jointing when ordering products.
11. Users could order spare electric pumps additionally according to the requirements.
Pressurizing system of rubber conveyor belt joint vulcanizing machine:
We use our new designed rubber pressure bladder as presurizing system. Compared with ordinary metal pressure board, it has advantages of longer service life, better balanced pressure, lower rusting risk and lower leakage risk etc. You will get a more excellent joint vulcanizing result!
Package of rubber conveyor belt joint vulcanizing machine:
For more machine details, please feel free to contact us!
